Liquid Cooling Is Rewriting Data Center Piping, Is Your Mechanical Contractor Ready?
Air cooling topped out somewhere around 30 to 40kW per rack. AI training clusters are now shipping at 80 to 150kW per rack, and the only way to move that heat is liquid. For owners and general contractors, that shift has a blunt consequence: the piping scope just moved from the mechanical room into the white space, right up to the chip. Choosing a liquid cooling piping contractor who understands that difference is now a design decision, not a procurement afterthought.
From Perimeter CRAHs to the Rack Itself

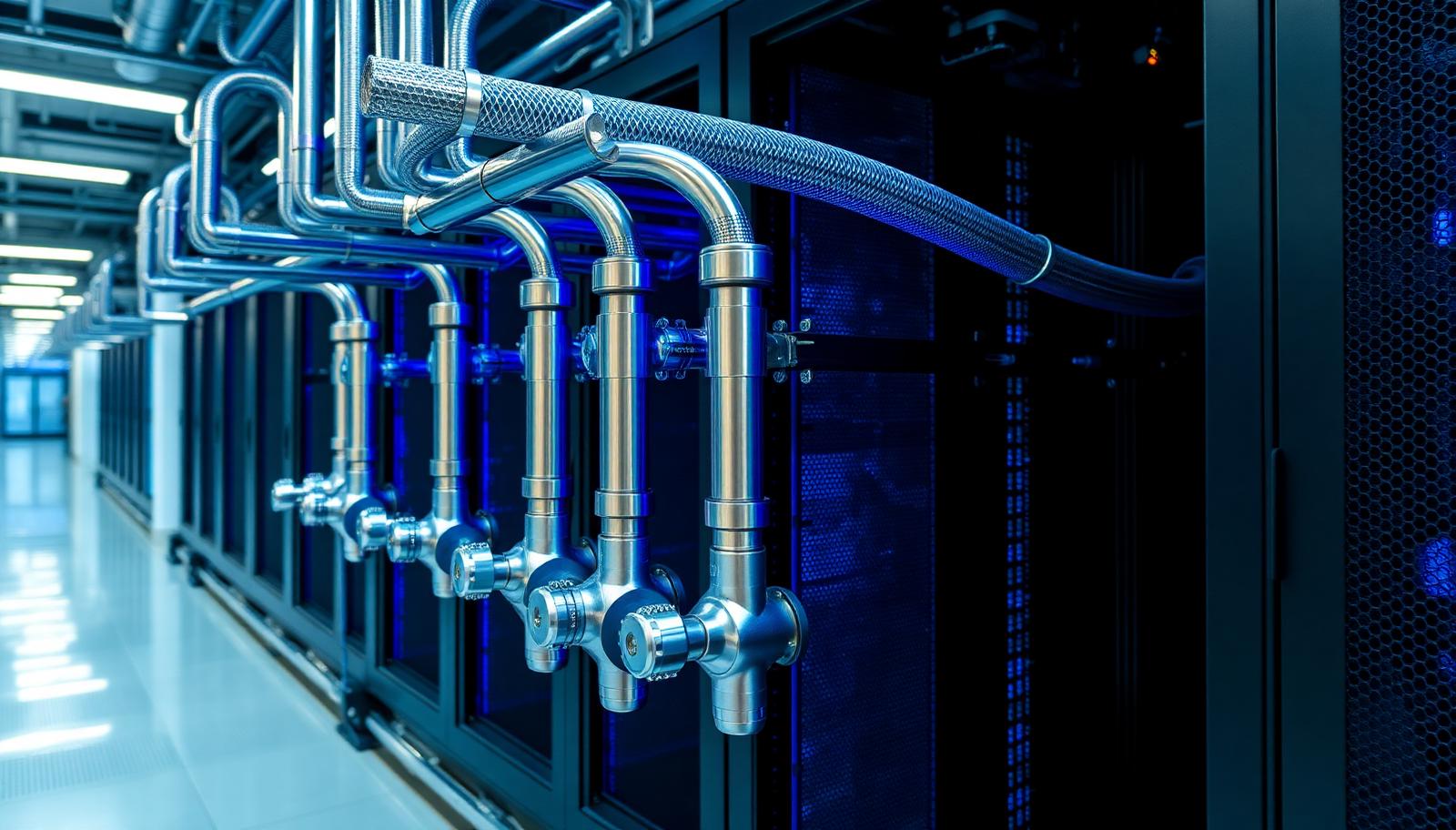

In a legacy hall, chilled water stopped at the CRAH units on the perimeter. In a liquid-cooled hall, a technology cooling system (TCS) loop runs from coolant distribution units (CDUs) into every row, feeding rack manifolds, rear-door heat exchangers, or cold plates bolted directly to the silicon. That means hundreds of additional joints, smaller-bore stainless and polymer piping, and flow-critical balancing inside the most sensitive room on the campus.
Cleanliness Is the New Weld Quality
Direct-to-chip loops run through microchannel cold plates with passages measured in fractions of a millimeter. Mill scale, weld slag, thread sealant shavings, or bacteria in the loop will clog plates and starve GPUs. Elite contractors now execute pharma-grade practices on TCS piping:
- Orbital welding or fusion joining to eliminate internal weld debris
- Capped and bagged spools from the fab shop to the point of installation
- Multi-stage flushing, filtration to specification, and verified fluid chemistry (PG25 or facility-specified coolant) before energization
- Documented cleanliness sign-off per ASHRAE and OEM requirements: Nvidia-class hardware warranties can hinge on it
Hybrid Plants Mean Double the Coordination
Most AI facilities still reject 20 to 30 percent of heat to air, so the chilled water plant, economizers, and the new liquid loops must be designed, installed, and commissioned as one system. A contractor who can self-perform the primary plant piping, the CDU tie-ins, and the rack-level secondary loops removes the riskiest handoff in the building.
Retrofit Is the Sleeping Giant
Thousands of existing halls will be retrofitted for liquid cooling over the next five years: live environments, no downtime tolerance, and tie-ins to operating chilled water plants. That is combustion-and-thermal-services DNA: hot taps, phased shutdowns, temporary cooling, and disciplined MOP execution. Ask your contractor how many live-environment tie-ins they have executed, not just how many greenfield halls.
Planning an AI-ready hall or a liquid cooling retrofit? CREATE Industries brings 20+ years of thermal systems, fabrication, and mechanical contracting to mission-critical cooling, delivered through North Forge Contracting with 24/7 nationwide response. Call (251) 209-8127.
Related reading from CREATE Industries: Data Center Piping Contractors, Data Center Pipe Fitting, Data Center Mechanical Contracting, Data Center Perimeter Security, and our service capabilities.
FAQs: Liquid Cooling Piping
Why is liquid cooling changing the data center piping scope?
Air cooling topped out somewhere around 30 to 40kW per rack, and AI training clusters are now shipping at 80 to 150kW per rack. The only way to move that heat is liquid, which pushes the piping scope out of the mechanical room and into the white space, right up to the chip.
What is a technology cooling system (TCS) loop?
In a liquid-cooled hall, a TCS loop runs from coolant distribution units (CDUs) into every row, feeding rack manifolds, rear-door heat exchangers, or cold plates bolted directly to the silicon. That means hundreds of additional joints, smaller-bore stainless and polymer piping, and flow-critical balancing inside the most sensitive room on the campus.
Why is cleanliness so critical in direct-to-chip loops?
Direct-to-chip loops run through microchannel cold plates with passages measured in fractions of a millimeter. Mill scale, weld slag, thread sealant shavings, or bacteria in the loop will clog plates and starve GPUs.
What cleanliness practices should a liquid cooling piping contractor follow?
Orbital welding or fusion joining to eliminate internal weld debris, capped and bagged spools from the fab shop to the point of installation, multi-stage flushing with filtration to specification and verified fluid chemistry (PG25 or facility-specified coolant) before energization, and documented cleanliness sign-off per ASHRAE and OEM requirements.
Do AI facilities still need air cooling?
Most AI facilities still reject 20 to 30 percent of heat to air, so the chilled water plant, economizers, and the new liquid loops must be designed, installed, and commissioned as one system.
What makes a liquid cooling retrofit different from a new build?
Retrofits happen in live environments with no downtime tolerance and tie-ins to operating chilled water plants. That calls for hot taps, phased shutdowns, temporary cooling, and disciplined MOP execution. Ask your contractor how many live-environment tie-ins they have executed, not just how many greenfield halls.
